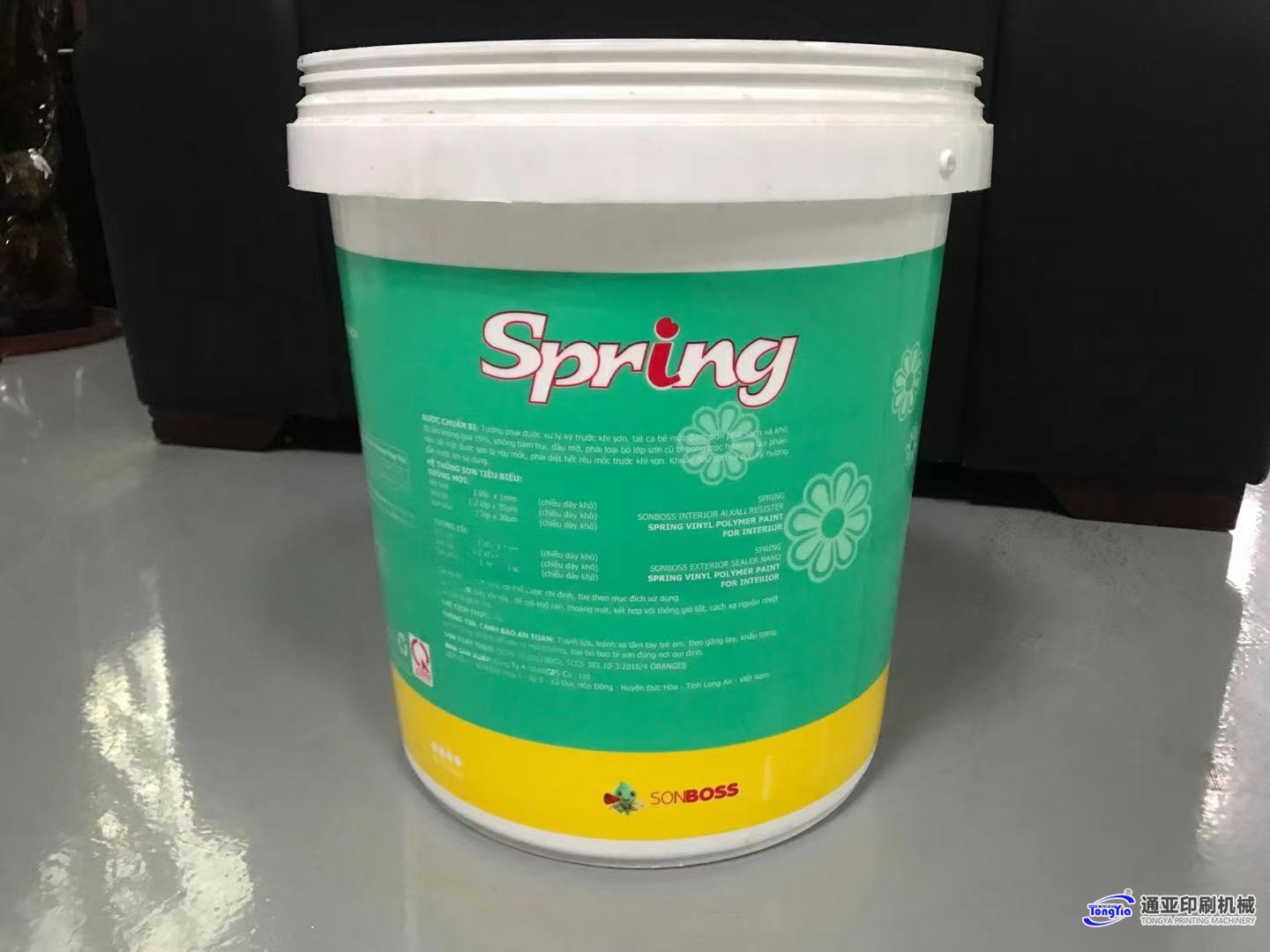

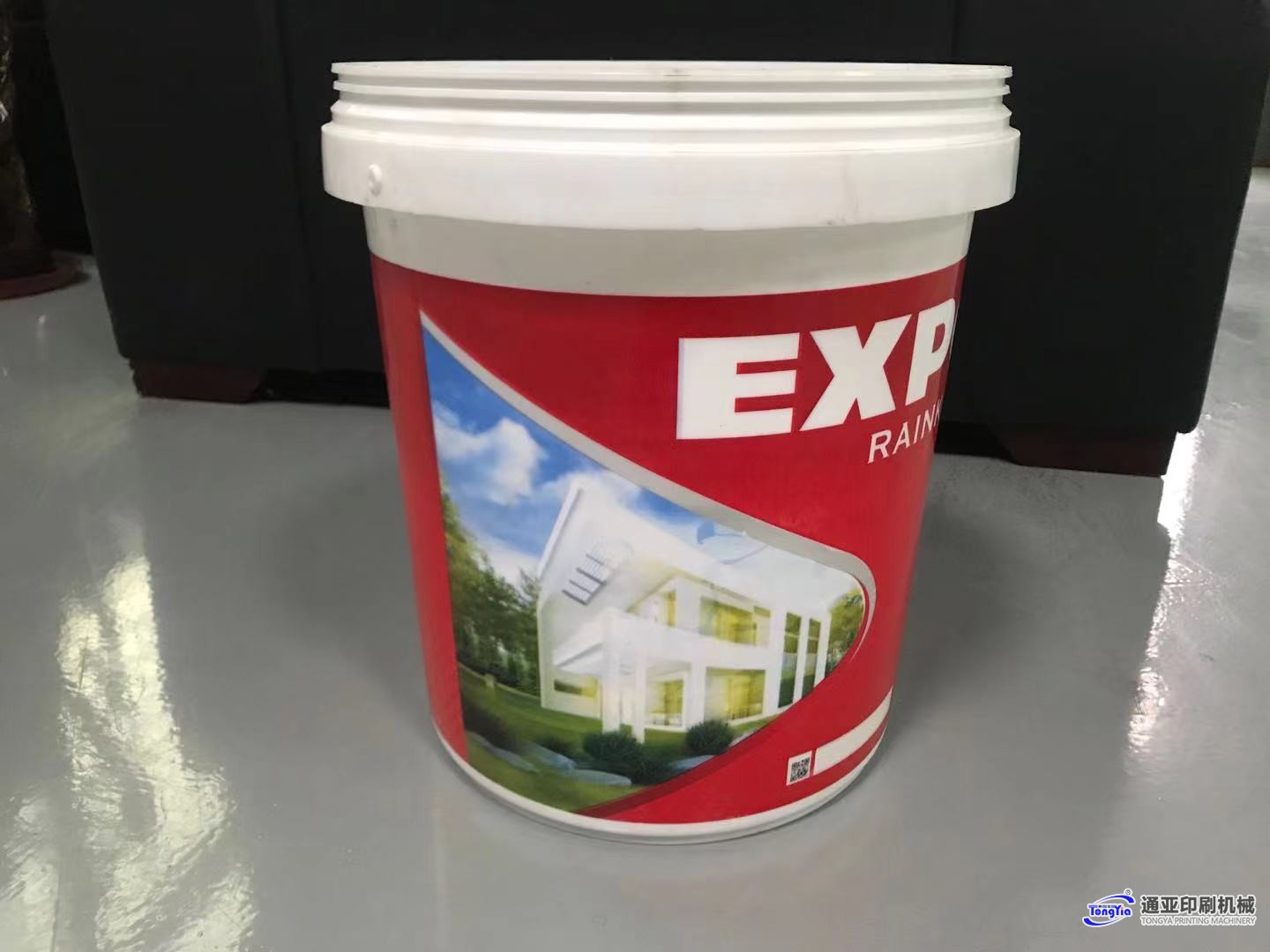

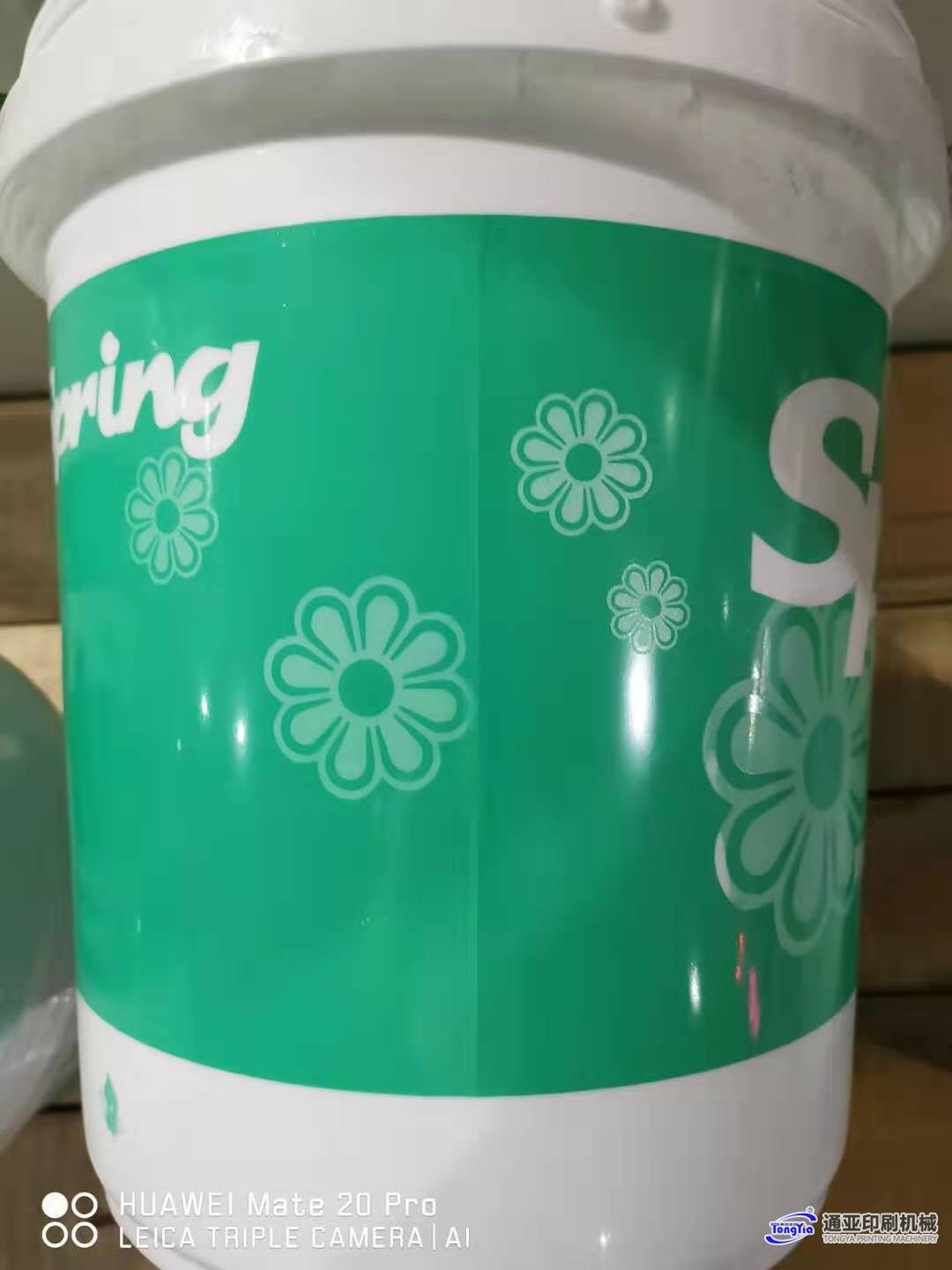

適用于：18L涂料桶、油漆桶、化工桶等圓桶四色絲網印刷

TYS-102UV4-18L技術參數PARAMETERS:

印刷桶直徑DIAMETER OF PRINTED BARREL:  300-380MM

             高度HEIGHT:  200-400MM

干燥方式WAY OF DRYING/Curing:     UV DRYING (6.5KW/COLOR * 4 COLORS = 26KW)

            MAIN MOTOR:      2KW * 4 = 8KW

印刷速度Printing speed:          16-18PCS/MIN (1000-1100PCS/HR)

電源Power supply:              3 phases 50Hz 34KW

氣源AIR SOURCE:               5-7 BAR

機器尺寸MACHINE SIZE:           based on actual machine design.

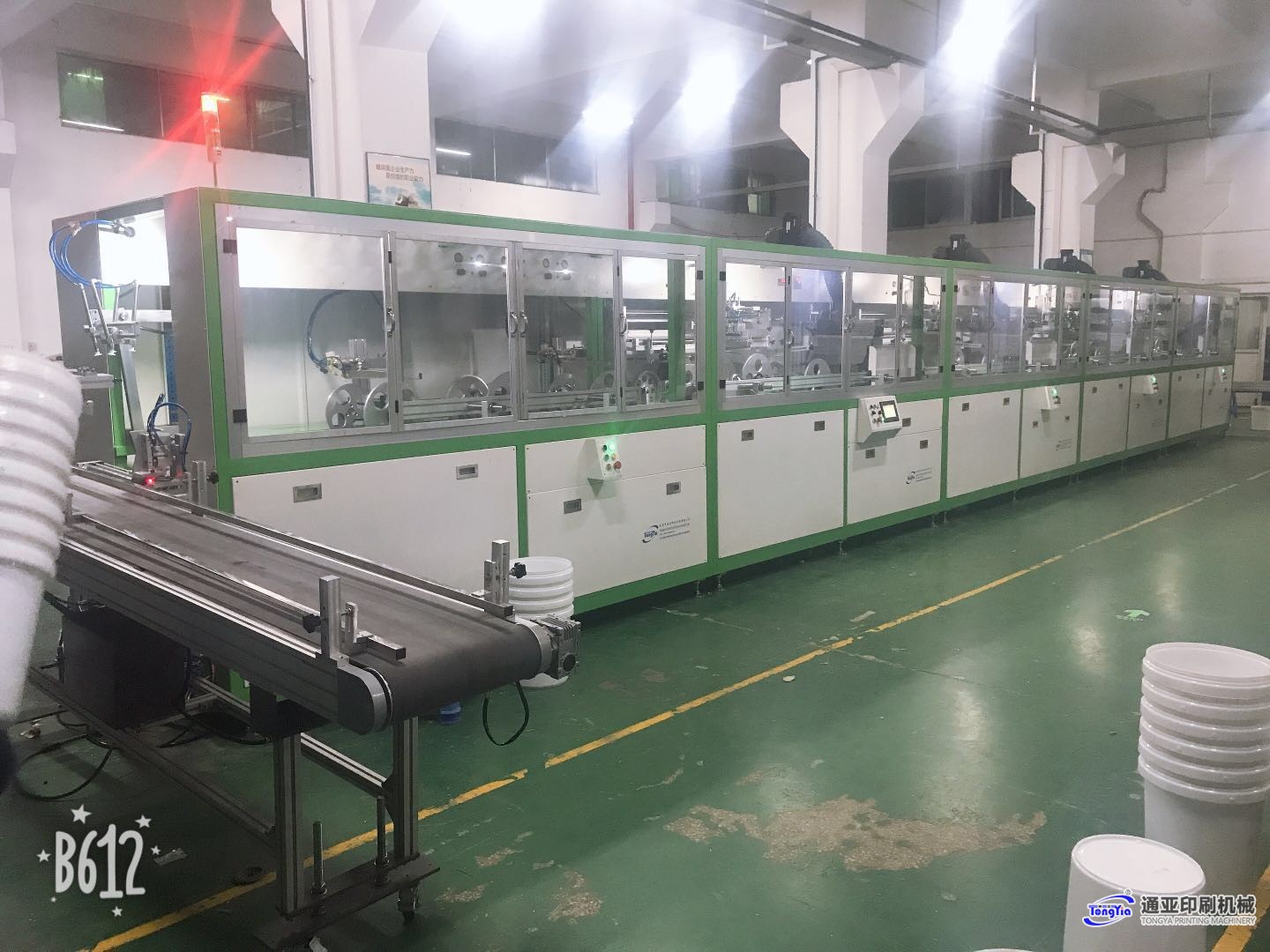

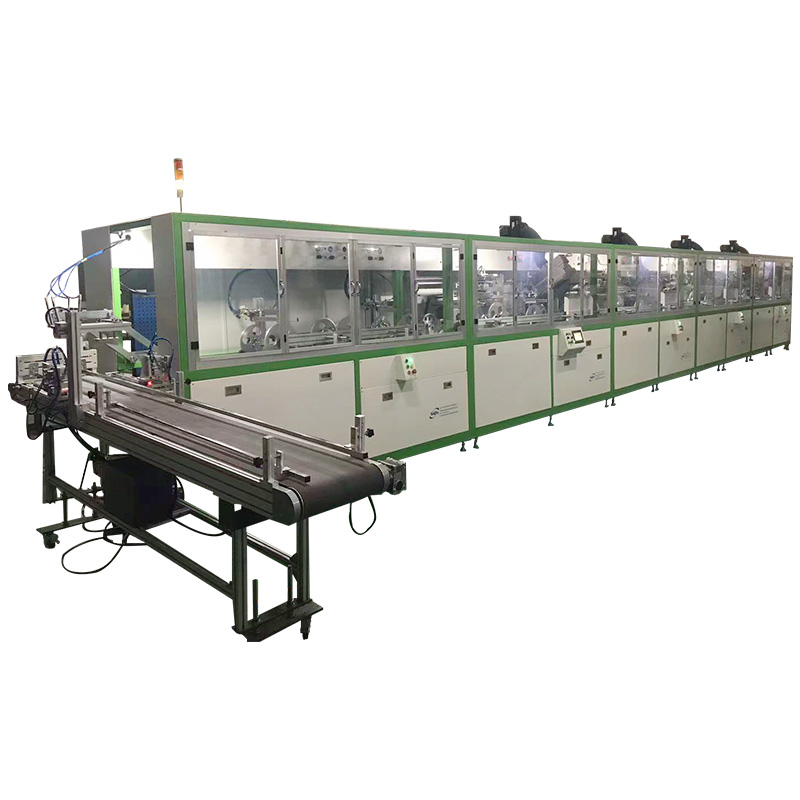

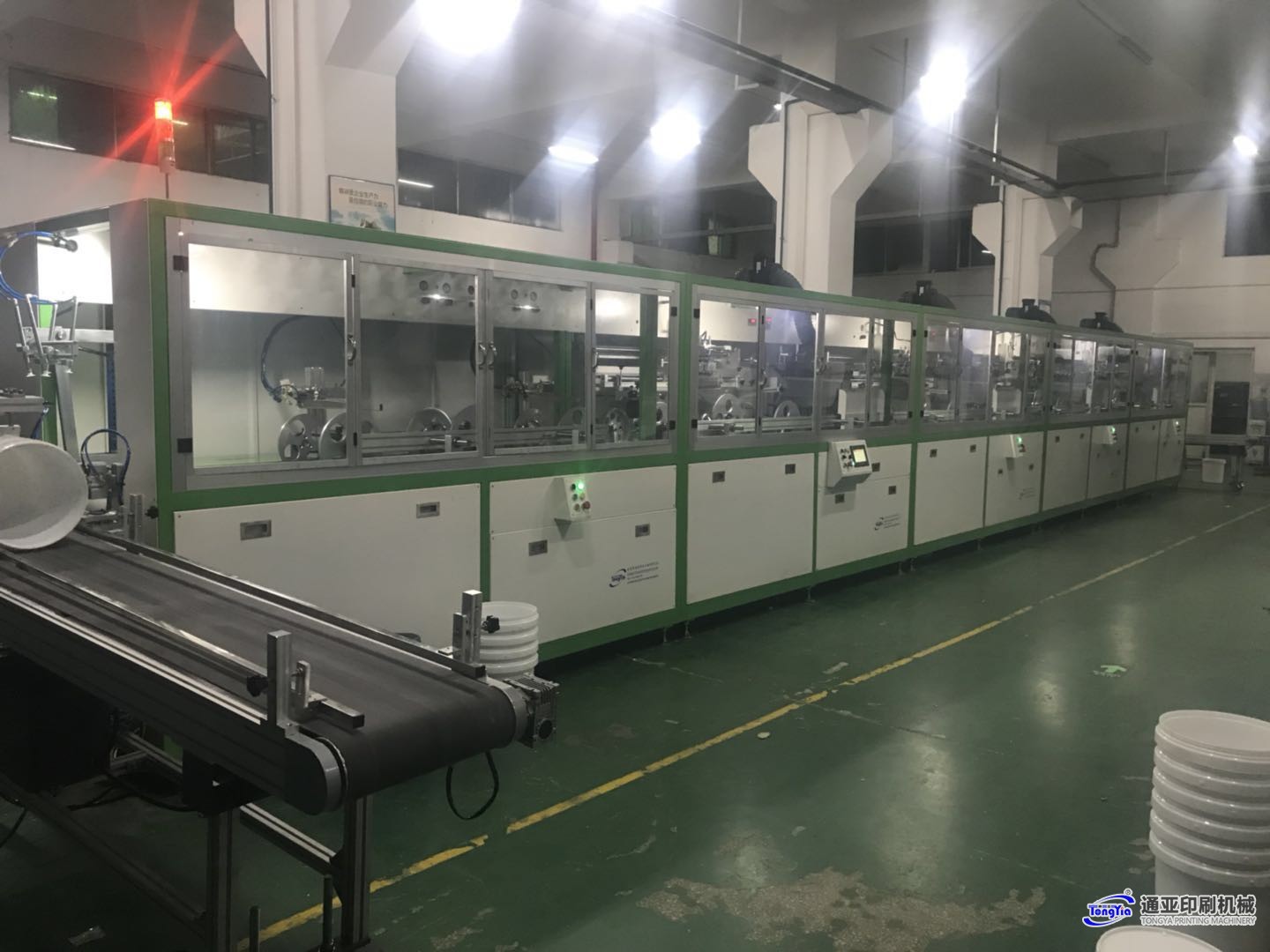

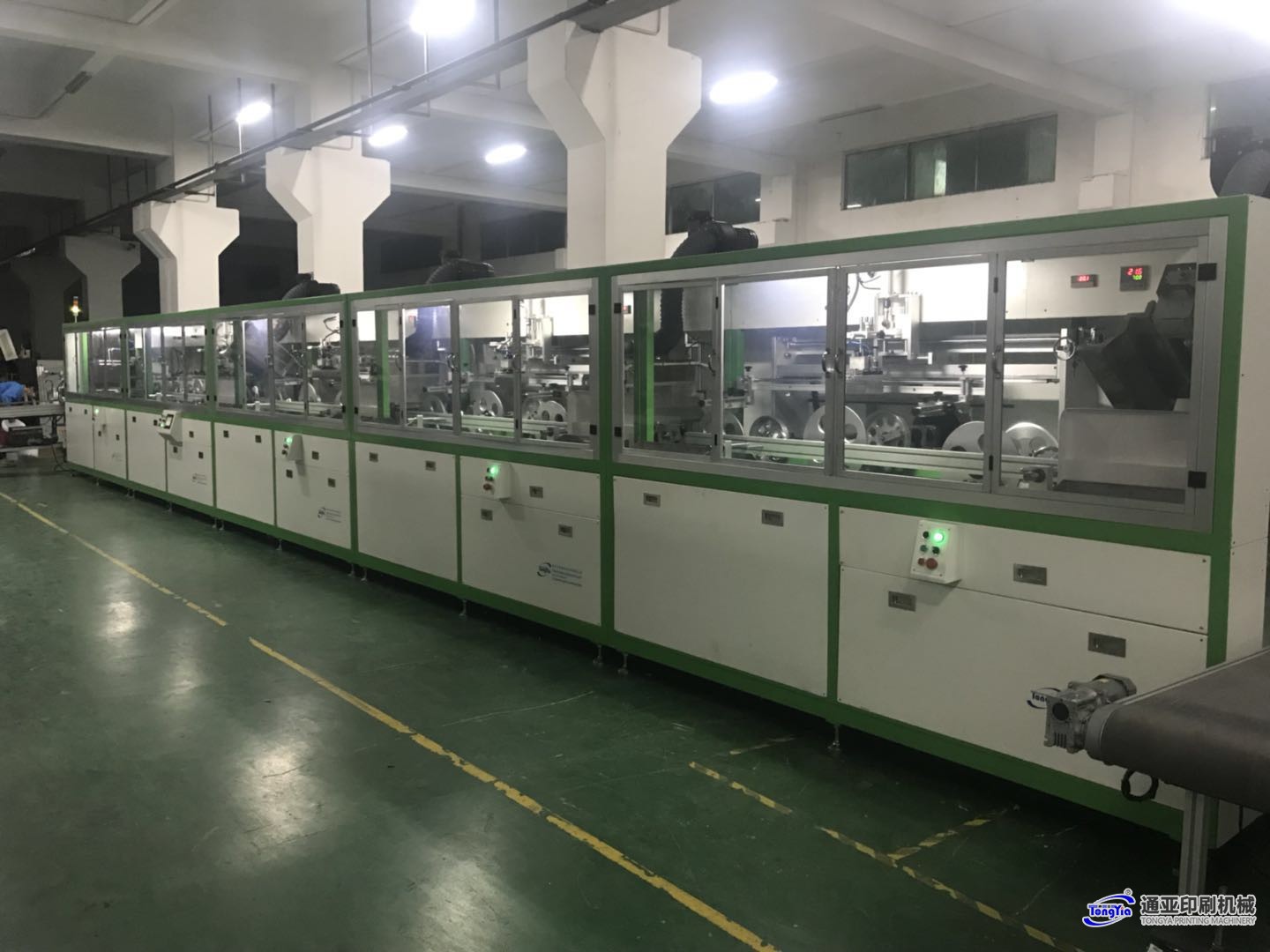

（1）TYS-102UV4-18L全自動絲網印刷生產線為四色圓面印刷機，

Fully automatic screen printing machine Model No. TYS-102UV4-18L is for color printing machine fitting Circular & Flat Container Products.

（2）整套生產線的控制系統由先進模塊式可編程控制器（PLC）與簡單易用的觸摸屏（TOUCH SCREEN）所構成； 本機的機械傳動部分采用進口馬達與其配套的變速箱構成，具有火焰表面處理、自動升降印頭、無極調速、快慢速機械傳動、自動預先對位、無件不印刷等控制功能；自動火焰表面處理裝置用于改變容器表面之組織結構，確保印刷油墨牢固附著于印刷上；

The full production line is consist of advanced PLC unit and Easy used touch screen; the model Mechanical drive parts adopted imported Motor and related gearbox and its function includes Automatic flame surface treat, auto up and down printing head, stepless speed regulation, Fast and slow mechanical drive,Automatic Pre-contraposition System, No Object No printing; the includes Automatic flame surface treatIs for changing the object’s surface Structure so that assuring the printing ink strongly adhered on the object .

（3）本機由自帶UV紫外線固化爐組成之絲印生產線，尤能顯現本公司自動化產品之優越性，同時在油墨固化前檢出印刷次品以便再次印刷也是一大特點。光電檢測輸送帶停止功能可以減少進料時皮帶對容器之磨花；

The model TYS-102UV4-18L is advanced machine with UV curing and detect printing defected before ink curing.

The “STOP FUNCITON” for Photoelectric inspection conveyor belt can reduce Wear and tear of the belt on the container;

TYS-102UV4-18L配置PARAMETERS:

主電機MAIN MOTOR:           西帝SITI

氣動元件Pneumatic element:    SMC OR AirTAC亞德客

感應電眼Sensor eyes:          SICK

小電機small motor:           GIAN精研 OR 萬鑫WANSHSIN

電磁閥SOLENOID VALVE:       CKD OR SMC

PLC & TOUCH SCREEN:         OMRON OR DELTA歐姆龍或臺達

軸承BEARING:               NSK OR THK

繼電器（RELAY）： IDEC（日本和泉）

變頻器（INVERTER）：Omron（日本歐姆龍）

按鈕開關（SWTICH）：IDEC（日本和泉）

光電開關（SENSOR）：AUTONICS
